R5000-Smnc/5X.300.2x300.2x19

R5000-Smnc/5X.300.2x300.2x19

Detailed specification pdf / 208.08 KB

Features

DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Smnc/5X.300.2x300.2x19, 5 GHz subscriber terminal, net throughput up to 180 Mbps, integrated dual-pol antenna, 19 dBi, 16x16 deg
Net throughputup to 180 Mbps
Recommended distances7 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 25 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna19 dBi
WIRED INTERFACES
Wired InterfacesFastEthernet
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 209 x 206 x 72 mm, 1.0 kg

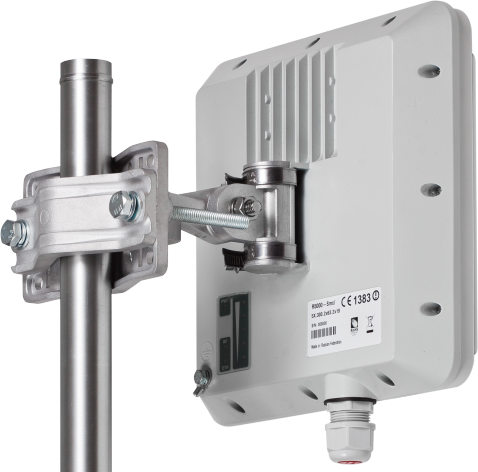

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor Unit
Power Supply
Power Cord
Cable Gland
Standard RJ-45 connector
Shielded RJ-45 connector
RJ-45 Plug Cap
Clamp
Quick Start Guide
R5000-Smnc/5X.300.2x300.2x19
IDU-CPE(48V)
IEC C13
MG20AS-06G-XA
TPR-8P8C
8P8C-U-C5-SH
TPC-1G
TORRO 40-60/9 C7 W4 DIN 3017
-
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
2 pcs.
1 pcs.
