Quanta 70

A new mmWave Point-to-Point solution based on Octopus SDR platform

Datasheet pdf / 6.89 MB

​ ​ ​ ​

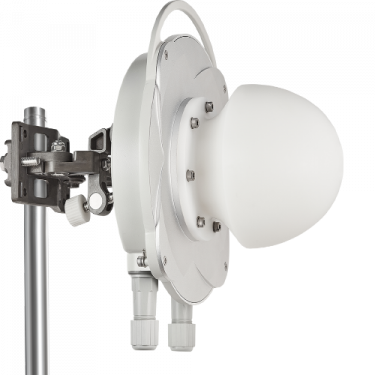

QUANTA 70

Quanta 70 is a brand new addition to the Infinet Wireless Point-to-Point product portfolio, operating in the 71-76 GHz frequency band. Quanta 70 delivers real throughput of up to 480 Mbps using a 125 MHz channel size and can operate at distances of up to 5 km.

The 71-76 GHz spectrum has much lower utilization as compared to the 5 GHz license-exempt frequency bands, but offers much better propagation than 60 GHz (V-band).
This spectrum is lightly licensed or sometimes even unlicensed in a number of countries and therefore enables the deployment of high-density networks in urban areas, with nearly zero interference

Quanta 70 is based on the brand new Octopus SDR platform, making this family of PTP solutions fully future proof and allowing it to improve its PHY, MAC and upper layer features remotely via a simple firmware upgrade, including for units already deployed in the field.

Quanta 70 can operate either as a high-capacity access solution or as a backhaul for WISP networks deployed in urban areas. It is also fully suitable for building-to-building connectivity and in campus networks for enterprises of all types and sizes.

Octopus SDR Platform

Infinet’s latest Octopus Software Defined Radio (SDR) platform has been designed using a stateof-the-art proprietary SDR technology specifically aimed at increasing link performance several-fold. Addressing challenges such as limited spectrum availability, growing interference and demands for yet more capacity, Quanta 70 combines the best features from Infinet’s well-proven R5000 and XG families, as well as numerous cutting-edge wireless breakthroughs, to deliver unparalleled performance in all weather conditions.

Frequency Bands

  • 71 — 76 GHz

Applications

  • High capacity backhauls for mobile operators and service providers
  • Building-to-building enterprise use
  • Full-fledged fibre/FSO/mm-wave systems replacement, extension or backup
  • High-capacity "last mile" access infrastructure
  • Public safety applications

Key Features and Highlights

  • Based on a Software-Defined Radio technology
  • Simplified regulatory requirements
  • Minimal or zero interference
  • Easy installation and fine tuning
  • Reliability

Quanta 70
Top Facts Sheet

Minimal or zero interference

Supporting 40 non-overlapping frequency channels and built with an integrated antenna having a pencil-wide narrow beam, Quanta 70 has minimal or zero impact from external interference, allowing it to achieve much higher density of collocated wireless units when compared to lower frequency bands.

Simplified regulatory requirements

The 71-76 GHz frequency band is lightly licensed or even unlicensed, depending on local regulations. Please contact your regulatory body for more information.

Easy installation and fine tuning

A new high-precision mounting bracket has been specifically designed to reduce the installation time and complexity, whilst achieving maximal performance. Additionally, the fully outdoor unit is fitted with an LED display showing the RSSI level in dBm.

Reliability

Automatic Repeat reQuest (ARQ) is instrumental in maintaining link capacity during drizzling rain, while the Automatic Modulation Control (AMC) algorithm managing as many as 8 Modulation-Coding Schemes (MCS) helps to maintain reliable connectivity in case of heavier precipitations. Ruggedized outdoor units have been designed to operate in temperatures ranging from -40 to +60°C, and at wind speeds of up to 160 km/h.

Accessories

Lightning Protection Unit AUX-ODU-LPU-G Lightning Protection Unit AUX-ODU-LPU-G

Is an optional outdoor Lightning Protection Unit (LPU) for InfiNet Wireless systems.

Indoor AC/DC injector with integrated lightning protection IDU-BS-G(60W) Indoor AC/DC injector with integrated lightning protection IDU-BS-G(60W)

IDU-BS-G(60W) is an indoor AC/DC PoE injector with integrated lightning protection. Compatible with InfiLINK XG/InfiLINK XG 1000, Quanta 5 families and R5000-Qmxb of the InfiMAN 2x2 family.

Indoor AC/DC injector IDU-CPE-G Indoor AC/DC injector IDU-CPE-G

IDU-CPE-G is an indoor AC/DC PoE injector designed for Quanta 5 family.

Mount Kit MONT-KIT-85PW Mount Kit MONT-KIT-85PW

Mount kit is a part of standard packing list of the Quanta 70 family units
