Quanta 5

A brand new cost effective Point-to-Point solution based on Octopus SDR platform

Datasheet pdf / 3.42 MB

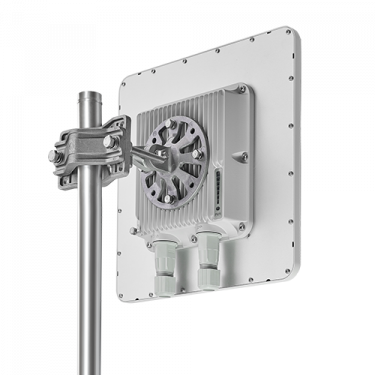

QUANTA 5

Quanta 5 is a brand new record-breaking spectral efficiency 5 GHz Point-to-Point solution with an impressive performance of up to 450 Mbps in just 40 MHz of spectrum. Quanta 5 offers a unique combination of high performance, affordability and ease of installation.

Quanta 5 is a fully future proof as it utilizes Octopus SDR platform that allows to bring new PHY, MAC and upper layer features via a firmware upgrade even for the units operating in the field

Quanta 5 can be deployed in a diverse range of applications, from backhauling for Wi-Fi and 4G/LTE base stations to CCTV and video-surveillance infrastructures. It can also provide Internet access to remote locations.

Octopus SDR Platform

InfNet’s latest SDR platform has been designed based on a Software-Defined Radio technology aimed at increasing link performance several-fold. Addressing challenges such as limited spectrum availability, growing interference challenges and demands for yet more capacity, Quanta 5 combines the best features from the well-proven InfNet Wireless R5000 and XG families as well as numerous cutting-edge wireless breakthroughs.

Frequency Bands

  • 4.9 — 6.0 GHz

Applications

  • High capacity backhauls for mobile operators and service providers
  • Full-fledged fibre/FSO/mm-wave systems replacement, extension or backup
  • High-capacity "last mile" access infrastructure
  • LOS and NLOS macro- and small-cell LTE backhaul
  • Connecting clusters of CCTV cameras to the monitoring centres
  • Rapid deployment of network infrastructure

Key Features and Highlights

  • Based on a Software-Defined Radio technology
  • Exceptional cost effciency
  • Optimal performance in all operational conditions
  • Effective interference mitigation techniques
  • Ease of Installation
  • Robustness

Quanta 5
Top Facts Sheet

Exceptional Cost Effciency

The Quanta 5 solution offers significant cost savings when compared to other cabled and wireless solutions available in today’s marketplace. It is the frst product from InfNet Wireless designed primarily for the SOHO market and small service providers.

Optimal Performance in all Operational Conditions

Quanta 5 supports 14 modulation-coding schemes, which makes it easily distinguishable from other solutions. Even when operating in high interference environments, Quanta 5 dynamically selects the most suitable MCS for each polarization, and ensures the delivery of all packets transmitted using an advanced ARQ algorithm.

Interference Mitigation

Quanta 5 has a number of built-in interference mitigation techniques. The Instant DFS technology allows automatic frequency channel change in case of congestion or radar detection, all achieved with zero outage. Thanks to its support of H-FDD (also known as split-frequency mode), it identifes and selects uplink and downlink channels independently.

Ease of Installation

Quick and ease of installation reduces feld deployment costs and facilitate rapid service delivery.

Robustness

Guaranteed and stable connectivity even in the most adverse weather conditions, including extreme temperature ranges from -40° to +60°C, thunderstorms and wind speeds of up to 160 km/h.

Accessories

Lightning Protection Unit AUX-ODU-LPU-G Lightning Protection Unit AUX-ODU-LPU-G

Is an optional outdoor Lightning Protection Unit (LPU) for InfiNet Wireless systems.

Mount Kit MONT-KIT-85 Mount Kit MONT-KIT-85

Mount kit is a part of standard packing list

Indoor AC/DC injector with integrated lightning protection IDU-BS-G(60W) Indoor AC/DC injector with integrated lightning protection IDU-BS-G(60W)

IDU-BS-G(60W) is an indoor AC/DC PoE injector with integrated lightning protection. Compatible with InfiLINK XG/InfiLINK XG 1000 families and R5000-Qmxb of the InfiMAN 2x2 family.
