R5000-Smnc/35.300.2x200.2x22
Point-to-Multipoint

R5000-Smnc/35.300.2x200.2x22

250 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 233 KB
Request a quote Loading

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Smnc/35.300.2x200.2x22, 3 GHz subscriber terminal, net throughput up to 180 Mbps, integrated dual-pol antenna, 22 dBi, 12x12 deg
Net throughputup to 180 Mbps
Recommended distancesup to 12 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range3400-3700 MHz
Channel width0.875*, 1.25*, 1.75*, 2.5*, 3.5, 5, 6, 7, 10, 12, 14, 15, 20, 28, 30, 40 MHz
Antenna22 dBi
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371 x 371 x 83 mm, 2.8 kg

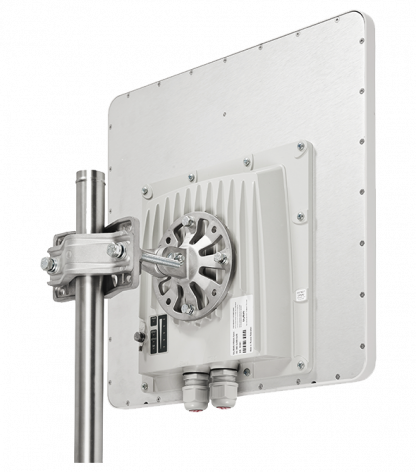

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Smnc/35.300.2x200.2x221 pcs.
Power Supply IDU-CPE-G(24W) 1 pcs.
Power Cord IEC C5 1 pcs.
Cable Gland MG20AS-06G-XA 2 pcs.
Standard RJ-45 connector TPR-8P8C 2 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.
