R5000-Smn/5X.300.2x300.2x26
Point-to-Multipoint
R5000-Smn/5X.300.2x300.2x26
250 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 232.79 KB
Request a quote Loading

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Smn/5X.300.2x300.2x26, 5 GHz subscriber terminal, net throughput up to 180 Mbps, integrated dual-pol antenna, 26 dBi, 8x8 deg
Net throughputup to 180 Mbps
Recommended distancesup to 15 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 25 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna26 dBi
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371х371х83 mm, 2,8 kg

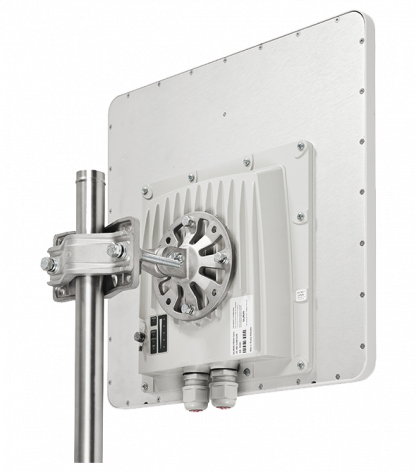

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Smn/5X.300.2x300.2x261 pcs.
Power Supply IDU-CPE(48V) 1 pcs.
Power Cord IEC C5 1 pcs.
Cable Gland MG20AS-06G-XA 2 pcs.
Standard RJ-45 connector TPR-8P8C 2 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.
