R5000-Qmxb/5X.300.2x300.2x21

R5000-Qmxb/5X.300.2x300.2x21

Detailed specification pdf / 235.77 KB

Features

DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Qmxb/5X.300.2x300.2x21, 5 GHz base station sector, net throughput up to 250 Mbps, integrated dual-pol beamforming antenna, 21 dBi, 90x8 deg (20 deg Az-steerable beam)
Net throughputup to 250 Mbps
Recommended distancesup to 20 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 25 dBm
Frequency range4900-6050 MHz
Channel width10, 20, 40 MHz
Antenna21 dBi
WIRED INTERFACES
Wired Interfaces1x GigabitEthernet (RJ45)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371 x 371 x 90 mm, 4.4 kg

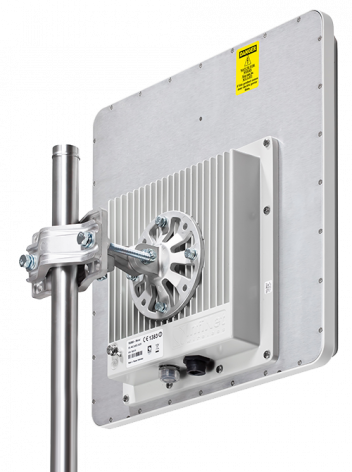

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor Unit
Power Supply
Power Cord
Connector
Standard RJ-45 connector
Shielded RJ-45 connector
RJ-45 Plug Cap
Mounting kit
Quick Start Guide
R5000-Qmxb/5X.300.2x300.2x21
IDU-BS-G(60W)
IEC C13
INFINET-002-P
TPR-8P8C
8P8C-U-C5-SH
TPC-1G
MONT-KIT-85
-
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
