DESCRIPTION | |
---|---|
Description | InfiLINK XG Xm/5X.1000.4x150.2x23, 5 GHz point-to-point unit, net throughput up to 1000 Mbps, integrated dual-pol antenna, 23 dBi, 10x10 deg |
Net throughput | up to 1000 Mbps |
Recommended distances | up to 25 km |
RADIO | |
Radio technology | MIMO 2x2, Cyclic single carrier |
Modulation coding schemes | from QPSK 1/4 to QAM256 30/32 |
Transmit power | up to 22 dBm |
Frequency range | 4900-6000 MHz |
Channel width | 10, 20, 40 MHz |
Antenna | 23 dBi |
WIRED INTERFACES | |
Wired Interfaces | 2x GigabitEthernet, SFP |
FORM FACTOR AND DIMENSIONS | |
Outdoor Unit (ODU) | 305 x 305 x 67 mm, 2.4 kg |

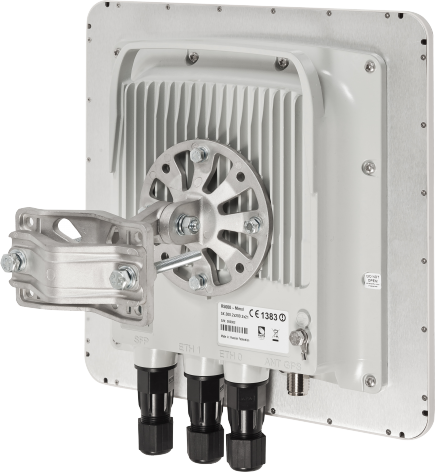

APPEARANCE | |
Point-to-Point
Xm/5X.1000.4x150.2x23
500 Mbps
2.0 - 6.425 GHz
Detailed specification
