Um/3X.500.2x500

Um/3X.500.2x500

Detailed specification pdf / 186.84 KB

Features

DESCRIPTION
DescriptionInfiLINK XG Um/3X.500.2x500, 3 GHz point-to-point unit, net throughput up to 500 Mbps, 2x N-type (F) connectors for external antenna
Net throughputup to 500 Mbps
Recommended distancesup to 100 km
RADIO
Radio technologyMIMO 2x2, Cyclic single carrier
Modulation coding schemesfrom QPSK 1/4 to QAM1024 8/10
Transmit powerup to 27 dBm
Frequency range2990-4010 MHz
Channel width10, 20, 40 MHz
Antenna
WIRED INTERFACES
Wired Interfaces2x GigabitEthernet, SFP
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 256 x 240 x 86 mm, 2.1 kg

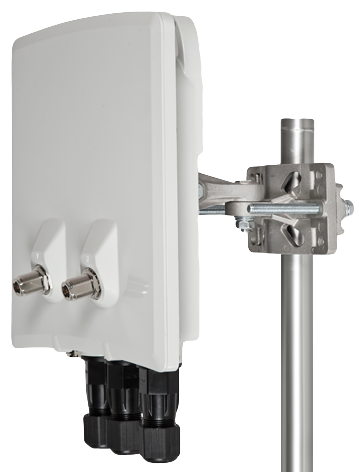

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor Unit
Power Supply
Power Cord
Cable Gland for RJ-45
Cable Gland for optical cable
Standard RJ-45 connector
Shielded RJ-45 connector
RJ-45 Plug Cap
Mounting kit
Quick Start Guide
Um/3X.500.2x500
IDU-BS-G(60W)
IEC C13
INFINET-GLAND-V1
INFINET-GLAND-V2
TPR-8P8C
8P8C-U-C5-SH
TPC-1G
MONT-KIT-85
-
1 pcs.
1 pcs.
1 pcs.
2 pcs.
1 pcs.
2 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
