Xm/5X.1000.4x300.2x26
Point-to-Point

Xm/5X.1000.4x300.2x26

1 Gbps
4.9 - 6.0 GHz
Detailed specification
pdf, 202.17 KB
Request a quote Loading

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiLINK XG 1000 Xm/5X.1000.4x300.2x26, 5 GHz point-to-point unit, net throughput up to 1000 Mbps, integrated dual-pol antenna, 26 dBi, 8x8 deg
Net throughputup to 1000 Mbps
Recommended distancesup to 40 km
RADIO
Radio technologyMIMO 2x2, Cyclic single carrier
Modulation coding schemesfrom QPSK 1/4 to QAM1024 8/10
Transmit powerup to 25 dBm
Frequency range4900-6000 MHz
Channel width2x10, 2x20, 2x40 MHz
Antenna26 dBi
WIRED INTERFACES
Wired Interfaces2x GigabitEthernet, SFP
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371 х 371 х 89 mm, 3.3 kg

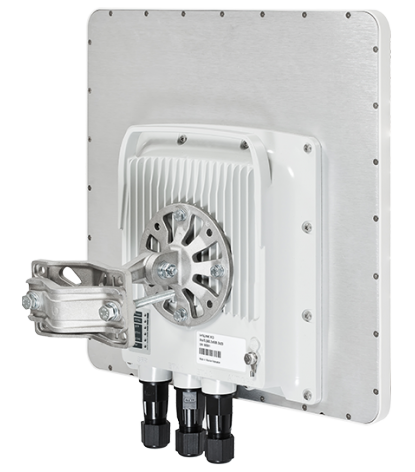

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitXm/5X.1000.4x300.2x261 pcs.
Power Supply IDU-CPE-G(56W) 1 pcs.
Power Cord IEC C13 1 pcs.
Cable Gland for RJ-45 INFINET-GLAND-V1 2 pcs.
Cable Gland for optical cable INFINET-GLAND-V2 1 pcs.
Standard RJ-45 connector TPR-8P8C 2 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.
