R5000-Smn/5X.300.2x300.2x19
Point-to-Point

R5000-Smn/5X.300.2x300.2x19

280 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 197.49 KB
Request a quote Loading

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiLINK 2x2 LITE R5000-Smn/5X.300.2x300.2x19, 5 GHz point-to-point unit, net throughput up to 180 Mbps, integrated dual-pol antenna, 19 dBi, 16x16 deg
Net throughputup to 180 Mbps
Recommended distancesup to 10 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 25 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna19 dBi
WIRED INTERFACES
Wired InterfacesFastEthernet
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 209 x 206 x 72 mm, 1.0 kg

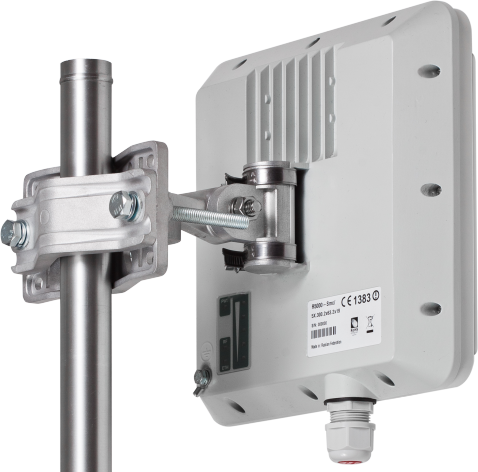

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Smn/5X.300.2x300.2x191 pcs.
Power Supply IDU-CPE-G(24W) 1 pcs.
Power Cord IEC C5 1 pcs.
Cable Gland MG20AS-06G-XA 1 pcs.
Standard RJ-45 connector TPR-8P8C 1 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Clamp TORRO 40-60/9 C7 W4 DIN 3017 2 pcs.
Quick Start Guide - 1 pcs.
