R5000-Omxs/5X.300.2x500
Point-to-Point

R5000-Omxs/5X.300.2x500

280 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 218.37 KB
Request a quote Loading

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiLINK 2x2 PRO R5000-Omxs/5X.300.2x500, 5 GHz point-to-point unit, net throughput up to 280 Mbps, 2x N-type (F) connectors for external antenna, Instant DFS
Net throughputup to 280 Mbps
Recommended distances90+ km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 27 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna
WIRED INTERFACES
Wired Interfaces1x GigabitEthernet (RJ45)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 240 x 240 x 57 mm, 2.2 kg

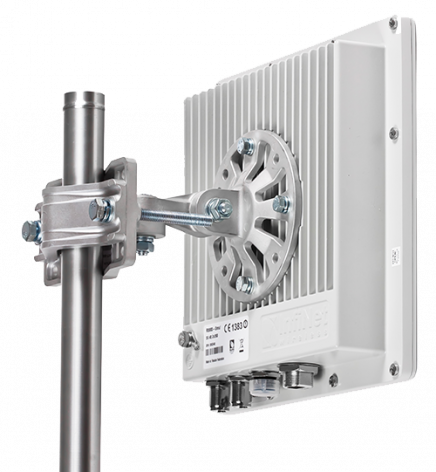

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Omxs/5X.300.2x5001 pcs.
Power Supply IDU-BS-G 1 pcs.
Power Cord IEC C13 1 pcs.
Connector INFINET-002-P 1 pcs.
Standard RJ-45 connector TPR-8P8C 1 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.

Detailed specification pdf / 218.37 KB
