R5000-Mmx/6X.300.2x200.2x24

R5000-Mmx/6X.300.2x200.2x24

Detailed specification pdf / 218.46 KB

Features

DESCRIPTION
DescriptionInfiLINK 2x2 PRO R5000-Mmx/6X.300.2x200.2x24, 6 GHz point-to-point unit, net throughput up to 280 Mbps, integrated dual-pol antenna, 24 dBi, 9x9 deg
Net throughputup to 280 Mbps
Recommended distancesup to 25 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range6050-6425 MHz
Channel width5, 10, 20, 40 MHz
Antenna24 dBi
WIRED INTERFACES
Wired Interfaces1x GigabitEthernet (RJ45)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 305 x 305 x 68 mm, 2.5 kg

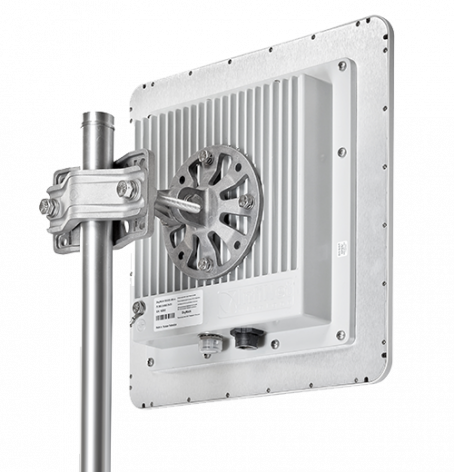

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor Unit
Power Supply
Power Cord
Connector
Standard RJ-45 connector
Shielded RJ-45 connector
RJ-45 Plug Cap
Mounting kit
Quick Start Guide
R5000-Mmx/6X.300.2x200.2x24
IDU-BS-G
IEC C13
INFINET-002-P
TPR-8P8C
8P8C-U-C5-SH
TPC-1G
MONT-KIT-85
-
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
1 pcs.
