Xm/3X.500.2x500.2x22

Xm/3X.500.2x500.2x22

Detailed specification pdf / 201.82 KB

Features

DESCRIPTION
DescriptionInfiLINK XG Xm/3X.500.2x500.2x22, 3 GHz point-to-point unit, net throughput up to 500 Mbps, integrated dual-pol antenna, 22 dBi, 12x12 deg
Performanceup to 500 Mbps
Recommended distancesup to 30 km
RADIO
Radio technologyMIMO 2x2, Cyclic single carrier
Modulation typesfrom QPSK 1/4 to QAM256 30/32
Transmit powerup to 27 dBm
Frequency range2990-4010 MHz
Channel width10, 20, 40 MHz
Antenna22 dBi
WIRED INTERFACES
Wired Interfaces2x GigabitEthernet, SFP
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371 x 371 x 89 mm, 3.3 kg

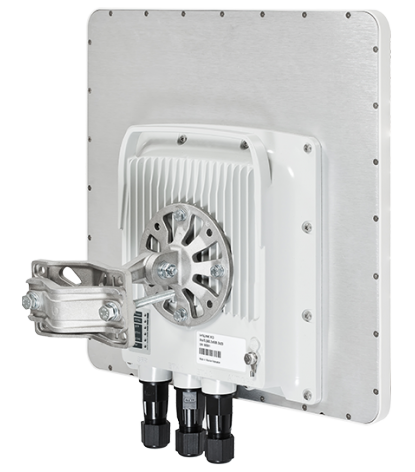

APPEARANCE
