InfiLINK XG

Record-breaking Point-to-Point solution. New generation system for the most important tasks.

Datasheet pdf / 484.49 KB


InfiLINK XG record-breaking and innovative Point-to-Point solution.

InfiLINK XG is InfiNet’s most recent addition to our wireless portfolio. It is a record-breaking and innovative Point-to-Point solution in the sub-7 GHz frequency band, boasting the best-in-breed spectral efficiency, higher-than-ever-before processing power and distance vs performance ratio. Reaching a peak of 500 Mbps of net throughput in 40 MHz of spectrum and more than 130 Mbps in only 10 MHz, it is the highest performing Point-to-Point system available in the marketplace today.

Available with a wide range of integrated antennae, as well as a connectorized version for use with 3rd party external antennae, and coupled with improved transmit power and sensitivity, the XG family will fit perfectly into a large array of applications such as backhaul in the telecom market, education, oil and gas, smart cities, video surveillance and public safety. It was designed by InfiNet to meet the exact requirements of the most demanding customers, most complex projects and most challenging environments.

Frequency Bands

  • 4.9 — 6.0 GHz
  • 6.0 — 6.425 GHz

Additional frequency bands will be supported in future releases

Applications

  • High capacity short-, medium- and haul for mobile operators and service providers
  • Full-fledged fibre/FSO/mm-wave systems replacement, extension or backup
  • LOS and NLOS macro- and small-cell LTE backhaul
  • Connecting clusters of CCTV cameras to the monitoring centres
  • Rapid deployment of network infrastructure

Key Features and Highlights

  • Extensive interference mitigation and NLOS toolkit
  • Well-balanced selection of integrated and external antenna models
  • Aesthetical design
  • TDD sync using GPS receiver or IEEE1588
  • Consistent latency below 1 ms
  • Maximal throughput decline as low as 7% at 100 km distance

InfiLINK XG
Top Facts Sheet

Highest spectral efficiency
  • Best-in-class 13 bps/Hz
  • In excess of 100 Mbps net throughput in only 10 MHz channel width
  • Highest order QAM256 and QAM1024 modulations
Superior performance and processing power
  • Unmatched 1+ million packets-per-second processing power
  • Full capacity at any packets sizes and for any type of traffic
  • Real throughput up to 240 Mbps in 20 MHz channel and up to 500 Mbps in 40 MHz
Longest reach

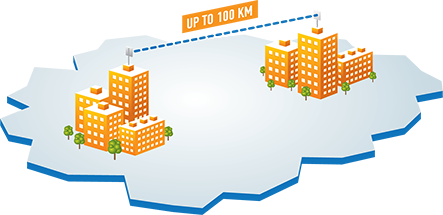

  • Distances in excess of 30 km with integrated antennas and more than 100 km with external high gain antennas
  • High-power transmitter and improved sensitivity even at highest modulations, ensuring maximal link budget
  • Unprecedented system gain of 177 dB even with integrated antennas
Seamless integration
  • Extended QoS support
  • Two RJ-45 Gigabit Ethernet ports and SFP port
  • Support of IEEE1588v2
  • Full-fledged L2 switching with VLAN and Spanning Tree protocols supported

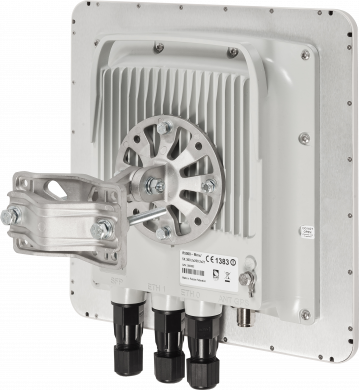

Fully rugged design well-suited for rapid deployment
  • Operating temperature range –40..+60º С
  • IP66/IP67 compliant water and dust protection
  • Aluminum cast enclosure
  • Built-in lightning protection
  • Universal mounting kit
  • Easy-to-use waterproof glands

Accessories

Lightning Protection Unit AUX-ODU-LPU-G Lightning Protection Unit AUX-ODU-LPU-G

Is an optional outdoor Lightning Protection Unit (LPU) for InfiNet Wireless systems.

Lightning Protection Unit with Injector AUX-ODU-INJ-G Lightning Protection Unit with Injector AUX-ODU-INJ-G

Is an outdoor DC injector with built-in lightning protection compatible with all InfiNet Wirelss outdoor units.

Mount Kit MONT-KIT-85 Mount Kit MONT-KIT-85

Mount kit is a part of standard packing list

RF Cable CAB-RF-1M RF Cable CAB-RF-1M

1 m high-quality low-loss RF cable.
