InfiLINK XG 1000

Record-breaking Point-to-Point solution for high-performance backhauls.

Datasheet pdf / 485.87 KB

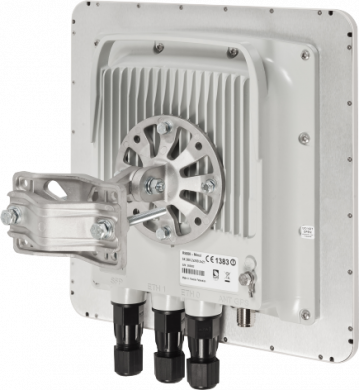

InfiLINK XG 1000 - record-breaking Point-to-Point solution for high-performance backhauls.

InfiLINK XG 1000 is a brand new range of products that accommodates escalating requirements for speed, reliability and flexibility. It can provide throughput of up to 1 Gbps over the air in 5 GHz license-free frequency bands. InfiLINK XG 1000 was specifically designed to deliver superior performance over long distances and in extremely adverse environments including nLOS and NLOS scenarios. The InfiLINK XG 1000 family units harmoniously complements the InfiLINK XG and enables to meet accelerating demand for cost-effectively capacity under rapidly evolving conditions.

InfiLINK XG 1000 uses two non-adjacent channels that gives a great advantage compared to 802.11ac systems. Thus, to achieve a peak throughput of 1 Gbps it utilizes two 40 MHz channels instead of a single 80 MHz.
Available with a wide range of integrated antennae, as well as a connectorized version for use with 3rd party external antennae, the InfiLINK XG 1000 family is the ideal choice for a large array of applications such as backhaul in the telecom market, education, oil and gas, smart cities, video surveillance and public safety. It was designed by InfiNet to meet the exact requirements of the most demanding customers, most complex projects and most challenging environments.

Frequency Bands

  • 4.9 — 6.0 GHz

Applications

  • High capacity short-, medium- and longhauls for mobile operators and service providers
  • Full-fledged fibre/FSO/mm-wave systems replacement, extension or backup
  • Digital oilfields connectivity
  • LOS and NLOS macro- and small-cell LTE backhaul
  • Connecting clusters of CCTV cameras to the monitoring centres
  • Rapid deployment of network infrastructure

Key Features and Highlights

  • Extensive interference mitigation and NLOS toolkit
  • Best-in-breed spectral efficiency up to 14 bps/Hz
  • Flexible frequency planning: utilizing two non-adjacent frequency channels
  • Support of TDD and Hybrid-FDD
  • TDD synchronization using a built-in GNSS receiver
  • Well-balanced selection of integrated and external antenna models
  • Aesthetical design
  • Minimal throughput decrease on long distances

InfiLINK XG 1000
Top Facts Sheet

Highest spectral efficiency
  • Best-in-class 14 bps/Hz
  • Highest order QAM256 and QAM1024 modulations
Superior performance and processing power
  • Consistent latency below 1,5 ms
  • Transparent L2 transport for Ethernet traffic of any type
  • Real throughput up to 500 Mbps in 2x20 MHz channel and up to 1000 Mbps in 2x40 MHz
Longest reach

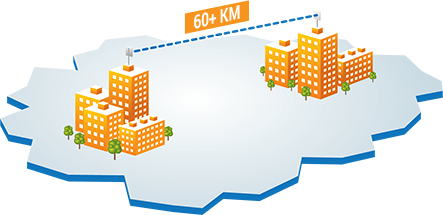

  • Distance more than 60 km with external high gain antennas
  • High-power transmitter and improved sensitivity even at highest modulations, ensuring maximal link budget
  • Unprecedented system gain of 172 dB even with integrated antennas
Seamless integration
  • Extended QoS support
  • Two RJ-45 Gigabit Ethernet ports and SFP port
  • Support of IEEE1588v2
  • Built-in full-fledged L2 switch supporting VLAN and Spanning Tree Protocol
Fully rugged design well-suited for rapid deployment
  • Operating temperature range –40..+60º С
  • IP66/IP67 compliant water and dust protection
  • Aluminum cast enclosure
  • Built-in lightning protection
  • Universal mounting kit
  • Easy-to-use waterproof glands
Improved noise immunity / interference avoidance
  • TDD synchronization using a built-in GNSS receiver

Accessories

Lightning Protection Unit AUX-ODU-LPU-G Lightning Protection Unit AUX-ODU-LPU-G

Is an optional outdoor Lightning Protection Unit (LPU) for InfiNet Wireless systems.

Lightning Protection Unit with Injector AUX-ODU-INJ-G Lightning Protection Unit with Injector AUX-ODU-INJ-G

Is an outdoor DC injector with built-in lightning protection compatible with all InfiNet Wirelss outdoor units.

Mount Kit MONT-KIT-85 Mount Kit MONT-KIT-85

Mount kit is a part of standard packing list

RF Cable CAB-RF-1M RF Cable CAB-RF-1M

1 m high-quality low-loss RF cable.
