InfiMAN 2x2 - Point-to-Multipoint solution

High-capacity metropolian area network

InfiMAN 2x2 Wireless Point-to-Multipoint Solution

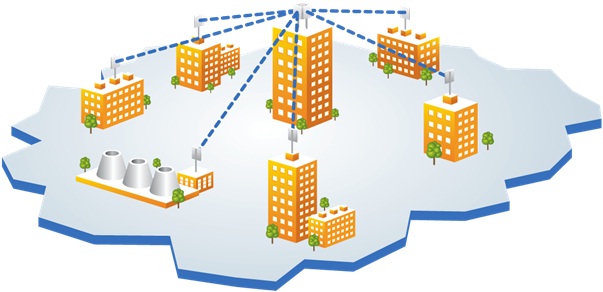

InfiMAN 2x2 is a successful field-proven family of wireless point-to-multipoint products designed for various applications, including fixed wireless access infrastructure for operators and enterprise networks, including nomadic and mobile functionality. It encompasses a number of base station sector units, including those with a beamforming antenna, and a range of subscriber terminals with both various integrated antennas and connectorized ones. The whole family features high spectral efficiency, exceptional reliability and excellent Quality of Service (QoS).

Frequency Bands

  • 3.1 — 4.0 GHz
  • 4.9 — 6.0 GHz
  • 6.0 — 6.4 GHz​

Applications

  •

    Triple-play wireless ISP networks

  • Video surveillance, traffic management and public safety wireless infrastucture

  • Fixed, nomadic and mobile connectivity solution for SCADA systems

  • Long-range rural connectivity

  • Government and municipal networks

  • Key Features and Highlights

Key Features and Highlights

  • Innovative solutions including base station sectors with two-way beamforming antennas

  • Base station capacity up to 240 Mbps per sector

  • Multiple licensed and license-free frequency bands supported

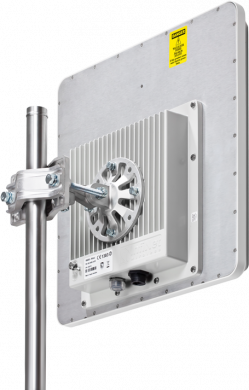

  • Vast variety of integrated antenna units including both BS sector units and subscriber terminals

  • Flexible frequency planning and powerful interference mitigation tools

  • Advanced QoS features

InfiMAN 2x2
Top Facts Sheet

Fully scalable and spectral efficient licensed band solution
  • Maximal utilization of the available spectrum through the support of TDD synchronization and frequency re-use
  • Intra- and inter-site synchronization via GNSS-based common timing reference using AUX-ODU-SYNC
  • Minimal requirement of just two frequency channels per site and four channels per network
  • Multiple channel widths supported: 3.5/5/7/10/14/15/20/28/30/40 MHz
  • Minimal centre frequency adjustment step is 125 kHz
  • InfiMAN 2x2 is fully suited to replace outdated WiMAX networks in order to improve ARPU, boosting the capacity and providing brand new services
A self-optimizing and self-healing solution for license exempt bands
  • Base station sectors supported with smart beamforming technology to increase capacity two-fold and improve interference and noise immunity
  • Unique Instant DFS technology allowing continuous background monitoring of all available channels and instantaneous switch to another frequency channel for the BS sector and all its subscribers in case of congestion
  • Spectrum analysis tool supporting multiple modes for in-depth review
  • Sophisticated proprietary air architecture optimized for best performance in spectrum pollution
  • Proactive automatic modulation control algorithm
Best-in-breed solution for long-range rural connectivity
  • High gain integrated base station sectors and subscriber terminals boost sector coverage up to 25 km
  • All-integrated solution in combination with installation
  • Field diagnostics tools available to facilitate rapid deployment and reduce installation costs
  • Robust and durable design featuring IP66/IP67 water and dust protection as well as built-in lightning protection help reduce total cost of ownership (TCO) and meet service level agreement (SLA) requirements for the most demanding customers
Comprehensive set of features covering a vast variety of applications
  • Fully fledged L2 switch supporting VLAN, Q-in-Q, Spanning Tree Protocols, etc.
  • Static and dynamic (RIP, OSPF) IP routing and "hybrid" switching-then-routing mode
  • GRE and IPIP tunneling
  • Unique proprietary MINT architecture
  • Joining multiple wireless segments into a single "virtual" system
  • End-to-end QoS, switching and routing
  • Inherent support for redundant connections and instant failover
  • Centralized management and firmware update
Management and maintenance features
  • Multiple management interfaces including CLI, web and SNMP v.1/2c/3
  • Collecting statistics and performing diagnostics using sFlow, syslog, LLDP and SNMP traps
  • InfiMAN 2x2 systems can easily be integrated into a 3rd party NMS
  • In-house InfiMONITOR EMS provides all necessary monitoring and management capabilities for InfiMAN 2x2 based networks of any size

Accessories

Synchronization Unit AUX-ODU-SYNC Synchronization Unit AUX-ODU-SYNC

Is a TDD synchronization hub, which has been designed to provide a timing reference to InfiMAN 2x2 base station sectors as well as to InfiLINK 2x2 PRO units

Lightning Protection Unit AUX-ODU-LPU-G Lightning Protection Unit AUX-ODU-LPU-G

Is an optional outdoor Lightning Protection Unit (LPU) for InfiNet Wireless systems.

Lightning Protection Unit with Injector AUX-ODU-INJ-G Lightning Protection Unit with Injector AUX-ODU-INJ-G

Is an outdoor DC injector with built-in lightning protection compatible with all InfiNet Wirelss outdoor units.

Alignment tool CAB-RV1 Alignment tool CAB-RV1

Is a lightweight and easy-to-use diagnostic tool
