Um/4X.500.2x200

Um/4X.500.2x200

Detailed specification pdf / 186.03 KB

Features

DESCRIPTION
DescriptionInfiLINK XG Um/4X.500.2x200, 4 GHz point-to-point unit, net throughput up to 500 Mbps, 2x N-type (F) connectors for external antenna
Performanceup to 500 Mbps
Recommended distancesup to 100+ km
RADIO
Radio technologyMIMO 2x2, Cyclic single carrier
Modulation typesfrom QPSK 1/4 to QAM256 30/32
Transmit powerup to 23 dBm
Frequency range3990-5010 MHz
Channel width10, 20, 40 MHz
Antenna
WIRED INTERFACES
Wired Interfaces2x GigabitEthernet, SFP
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 256 x 240 x 86 mm, 2.1 kg

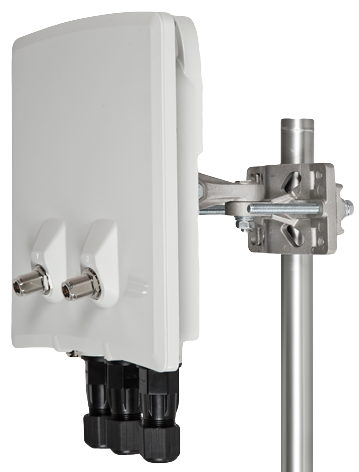

APPEARANCE
