R5000-Smn/5X.300.2x300.2x28

R5000-Smn/5X.300.2x300.2x28

Detailed specification pdf / 225.59 KB

Features

DESCRIPTION

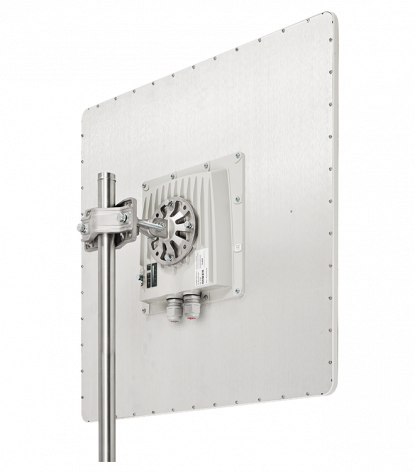

DescriptionInfiMAN 2x2 R5000-Smn/5X.300.2x300.2x28, 5 GHz subscriber terminal, net throughput up to 180 Mbps, integrated dual-pol antenna, 28 dBi, 5x5 deg
Net throughputup to 180 Mbps
Recommended distancesup to 20 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 25 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna28 dBi
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 600 x 600 x 68 mm, 5.8 kg
APPEARANCE
