R5000-Omxb/5X.300.2x500

R5000-Omxb/5X.300.2x500

Detailed specification pdf / 217.09 KB

Features

DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Omxb/5X.300.2x500, 5 GHz base station sector, net throughput up to 240 Mbps, 2x N-type (F) connectors for external antenna
Performanceup to 240 Mbps
Recommended distancesup to 40+ km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation typesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 27 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna
WIRED INTERFACES
Wired InterfacesGigabitEthernet
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 240 x 240 x 57 mm, 2.2 kg

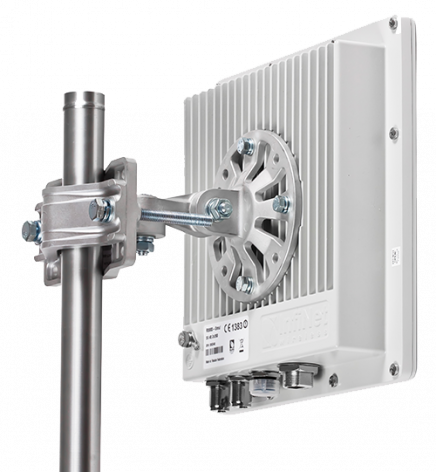

APPEARANCE
