R5000-Lmn/5X.300.2x300

R5000-Lmn/5X.300.2x300

Detailed specification pdf / 213.31 KB

Features

DESCRIPTION
DescriptionInfiMAN 2x2 R5000-Lmn/5X.300.2x300, 5 GHz subscriber terminal, net throughput up to 180 Mbps, 2x N-type (F) connectors for external antenna
Net throughputup to 180 Mbps
Recommended distances20+ km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 25 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS

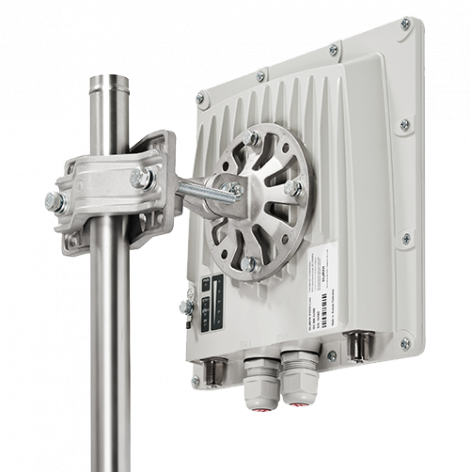

Outdoor Unit (ODU) 240 x 240 x 50 mm, 1.6 kg
APPEARANCE
