Xm/5X.1000.4x150.2x28

Xm/5X.1000.4x150.2x28

Detailed specification pdf / 190.18 KB

Features

DESCRIPTION
DescriptionInfiLINK XG 1000 Xm/5X.1000.4x150.2x28, 5 GHz point-to-point unit, net throughput up to 1000 Mbps, integrated dual-pol antenna, 28 dBi, 5x5 deg
Net throughputup to 1000 Mbps
Recommended distancesup to 50 km
RADIO
Radio technologyMIMO 2x2, Cyclic single carrier
Modulation coding schemesfrom QPSK 1/4 to QAM256 30/32
Transmit powerup to 22 dBm
Frequency range4900-6000 MHz
Channel width10, 20, 40 MHz
Antenna28 dBi
WIRED INTERFACES
Wired Interfaces2x GigabitEthernet, SFP
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 600 x 600 x 74 mm, 6.3 kg

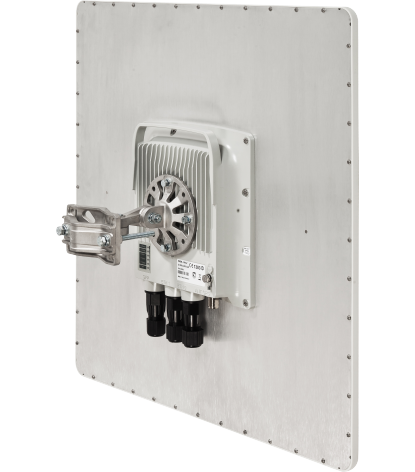

APPEARANCE
