R5000-Smn/6X.300.2x200.2x27

R5000-Smn/6X.300.2x200.2x27

Detailed specification pdf / 225.36 KB

Features

DESCRIPTION
DescriptionInfiLINK 2x2 LITE R5000-Smn/6X.300.2x200.2x27, 6 GHz point-to-point unit, net throughput up to 180 Mbps, integrated dual-pol antenna, 27 dBi, 5x5 deg
Performanceup to 180 Mbps
Recommended distancesup to 40 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation typesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range6050-6425 MHz
Channel width5, 10, 20, 40 MHz
Antenna27 dBi
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 600 x 600 x 68 mm, 5.8 kg

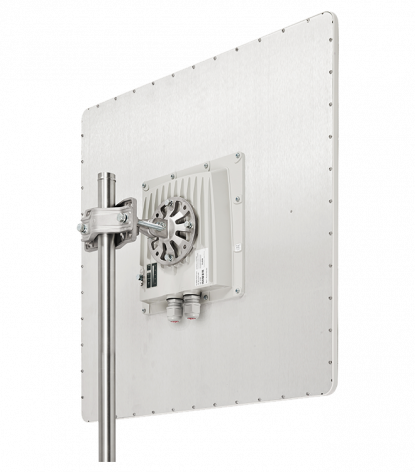

APPEARANCE
