R5000-Smn/6X.300.2x200.2x19

R5000-Smn/6X.300.2x200.2x19

Detailed specification pdf / 210.18 KB

Features

DESCRIPTION
DescriptionInfiLINK XG R5000-Smn/6X.300.2x200.2x19, 6 GHz point-to-point unit, net throughput up to 180 Mbps, integrated dual-pol antenna, 19 dBi, 16x16 deg
Net throughputup to 180 Mbps
Recommended distancesup to 12 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range6050-6425 MHz
Channel width5, 10, 20, 40 MHz
Antenna19 dBi
WIRED INTERFACES
Wired InterfacesFastEthernet
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 209 x 206 x 72 mm, 1.0 kg

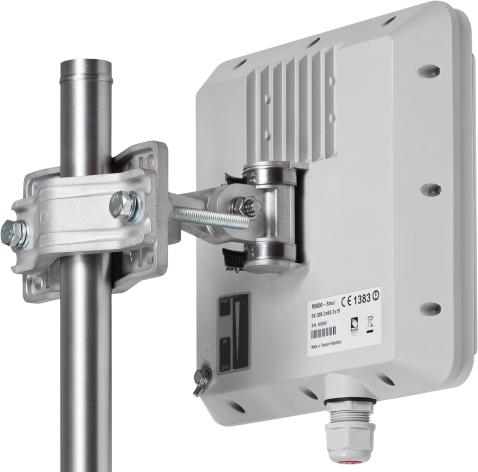

APPEARANCE
