R5000-Mmx/39.300.2x200.2x19
Point-to-Point

R5000-Mmx/39.300.2x200.2x19

280 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 218.21 KB
Request a quote Loading

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiLINK 2x2 PRO R5000-Mmx/39.300.2x200.2x19, 3 GHz point-to-point unit, net throughput up to 280 Mbps, integrated dual-pol antenna, 19 dBi, 17x17 deg
Net throughputup to 280 Mbps
Recommended distancesup to 20 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range3900-4000 MHz
Channel width3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40 MHz
Antenna19 dBi
WIRED INTERFACES
Wired Interfaces1x GigabitEthernet (RJ45)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 305 x 305 x 81 mm, 2.9 kg

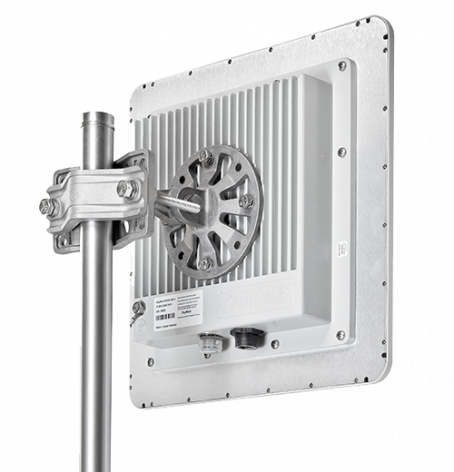

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Mmx/39.300.2x200.2x191 pcs.
Power Supply IDU-BS-G 1 pcs.
Power Cord IEC C13 1 pcs.
Connector INFINET-002-P 1 pcs.
Standard RJ-45 connector TPR-8P8C 1 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.
