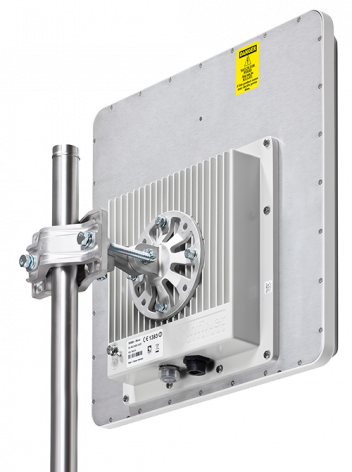

R5000-Mmx/38.300.2x200.2x22

R5000-Mmx/38.300.2x200.2x22

Detailed specification pdf / 233.34 KB

Features

DESCRIPTION
DescriptionInfiLINK 2x2 PRO R5000-Mmx/38.300.2x200.2x22, 3 GHz point-to-point unit, net throughput up to 280 Mbps, integrated dual-pol antenna, 22 dBi, 12x12 deg
Performanceup to 280 Mbps
Recommended distancesup to 25 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation typesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range3700-3900 MHz
Channel width3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40 MHz
Antenna22 dBi
WIRED INTERFACES
Wired InterfacesGigabitEthernet
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 371 x 371 x 90 mm, 3.4 kg
APPEARANCE
