R5000-Lmn/38.300.2x200

R5000-Lmn/38.300.2x200

Detailed specification pdf / 213.04 KB

Features

DESCRIPTION
DescriptionInfiLINK 2x2 LITE R5000-Lmn/38.300.2x200, 3 GHz point-to-point unit, net throughput up to 180 Mbps, 2x N-type (F) connectors for external antenna
Net throughputup to 180 Mbps
Recommended distancesup to 75+ km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 23 dBm
Frequency range3700-3900 MHz
Channel width3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40 MHz
Antenna
WIRED INTERFACES
Wired Interfaces2x FastEthernet (PoE out)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 240 x 240 x 50 mm, 1.6 kg

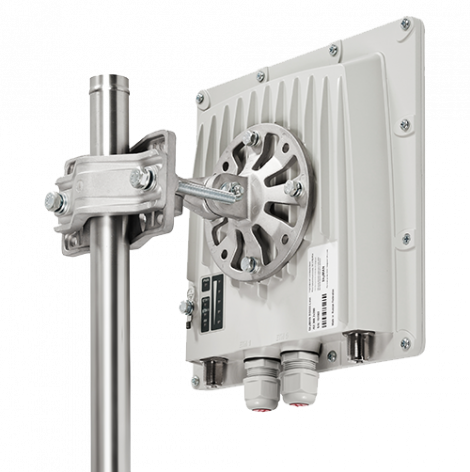

APPEARANCE
